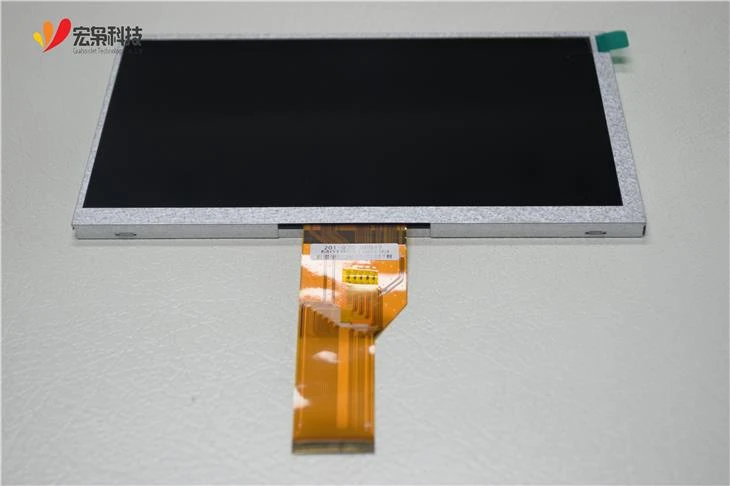

Iyi 7-inch capacitive touch screen module inotora iyo air bonding process, iyo capacitive touch screen iGG chimiro, iyo IC mhinduro inotora Cypress touch solution, resolution yekuratidzira i800 * 480, uye LCD girazi ndeyeTN zvinhu uye haina kukodzera iyo optical bonding process, inonyanya kukodzera dhizaini yechigadzirwa cheiyo yakadzamirwa yekubata touch screen yekubata mhinduro yekubata capacita solution. Iine huwandu hwakawanda hwekushandisa.
Tine mamwe mapurojekiti akakura uye nzira yakanakisa ndeyekubatanidza touch screen zvakananga kuburikidza ne USB interface kuRaspberry Pi kana iyo orange Pi, uye kuratidzwa kunogona kubatanidzwa zvakananga kuburikidza neHDMI interface, nenzira iyi mhinduro yese inogona kuitwa kuburikidza neplug uye play.For kuratidza, tinogona kupa RGB kuHDMI, LVDS kuHDMI, MPI kuHDMI, EDP kuHDMI uye mamwe madhiraivha mabhodhi kuti aone kubatana neRaspberry pisp.
| Tsanangudzo yeTPM | ||
| TPM | Model Number | HX0701703 |
| Brand | Grahowlet | |
| Size | 7.0 inch | |
| Operating Temperature | -20 dhigirii - 70 dhigirii | |
| Storage Temperature | -30 dhigirii - 80 dhigirii | |
| Outline Dimension | 165.00(W)x100.00(H)x7.90(D) mm | |
| Viewing Area | 154.88(W)x86.72(H) mm | |
| Active Area | 154.08(W)x85.92(H) mm | |
| Tsigira Systems | Windows/Android/Linux nezvimwe. | |
| Warranty | 1 gore | |
| CTP | Interface Type | IIC/USB |
| Chimiro | G+G | |
| Mutongi IC | Cypress | |
| Bata Points | 10 points | |
| Transparency | 85% | |
| Pamusoro Kuoma | 6H | |
| Power Supply Voltage | 2.8V - 3.3V | |
| TFT | Resolution | 800*480 |
| Interface Type | LVDS/HDMI/VGA | |
| Luminance | 500~1000 cd/m2; | |
| Viewing Angle | 80/80/60/70 | |
Reliable Service
Packing
1) Yakarongedzwa muanti-static bag kana ndiro
2) Putira mumhepo bubble film
3) Yakazara nekatoni bhokisi rekuwedzera, iro rinova nechokwadi chekuti zvinhu zvakachengeteka mukufambisa.
4) Isu takagamuchira customed package.
FAQ
Q1: Ndeipi nguva yandinogona kuwana mhinduro yekubvunza kwangu?
Vatengi vanowana mhinduro mukati me12hours.
Q2: Iwe unodzora sei kunaka kwezvinhu?
Chigadzirwa chega chega chichayedzwa zvakasimba chimwe nechimwe chisati chatumirwa kunze
Q3: Zvakadini mushure mekutengesa sevhisi?
Yedu yekutengesa & mainjiniya ichapa rutsigiro rwakasimba rwehunyanzvi kana rumwe rubatsiro kuburikidza nekuita kweprojekiti yako.
Q4: Ndingawana mhinduro kwenguva yakareba sei?
Mukati memaawa makumi maviri nemana. Nguva yekushanda yeChinese 8:30-18:00 Muvhuro-Chishanu sevhisi yepamhepo yekukubatsira kugadzirisa matambudziko.Pindawo nerunhare kana email,Skype inogoneka panguva dzehusiku nekupera kwevhiki.
Q5: Tichaitei kana tikawana chero chinhu chisipo kana chakaremara mushure mekugamuchira zvinhu?
Ndapota taura nesu ASAP, tichazviongorora uye kupa mhinduro yakanakisisa maererano nemamiriro ezvinhu.
