Customized Solution
Grahowlet- China P-CAP & TFT Manufacturer
• PCAP & LCD module saizi: 1.3"-32"
• Optical Bonding service : 1.3"-21.5"
• HDMI & VGA T{{0}CON Board iripo
• IIC{{0}USB interface Bridge board iripo
•CTP inogona kugadzirwa neinovhara girazi pamusoro pekugadzirisa maitiro AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Tsigira kubata negirazi rekuvhara 12mm.
• Tsigira kubata nemvura.
• Tsigira kubata ne5mm magirovhosi.
• Tsika Yakasimudzira TFT (Kusvika ku2300cd/㎡)
• Tsigira tembiricha yekushandisa: -40℃-85℃.
>>>Bata isu kuti uwane yako yega yakagadziridzwa mhinduro !!<<<
Product Description

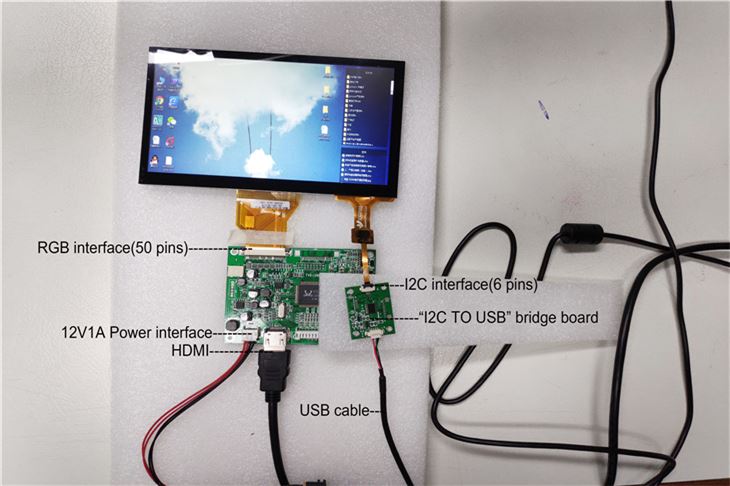

Chigadzirwa chedu chinogona kubatanidzwa kuRaspberry pi ne USB uye HDMI interface.Iyo pcap inoshandisa USB interface, iyo lcd inoratidza inoshandisa HDMI interface.
7 inch projected capacitive touch screen panel ine cypress touch controller ic inogona kutsigira kushanda nemagirovhosi, mvura, uye gobvu girazi kana PC pamusoro pegirazi rekuvhara, rinonyanya kushandiswa mukurapa, maindasitiri, chengetedzo, midziyo yemumba uye mimwe minda; Tsika kugadzirisa senge kurapwa kwepamusoro --AG, AR, AF iripo, kugadzirisa uye kupenya sarudzo, nezvimwe.

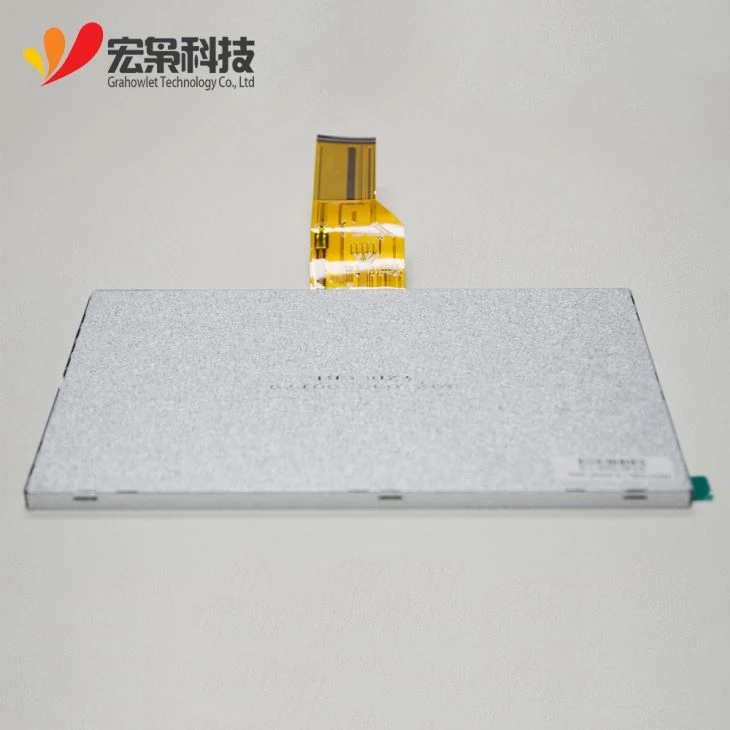

Iyi 7-inch raspberry pi i2c touch screen inotora iyo air bonding process, iyo capacitive touch screen iGlass sensor+Glass cover lens chimiro, IC mhinduro Cypress, resolution yekuratidzira i800*480, inonyanya kukodzera dhizaini yechigadzirwa cheyakamisikidzwa yekumisikidza chimiro chekuramba kubata mhinduro yakakwidziridzwa kune capacitance touch screen. Iine huwandu hwakawanda hwekushandisa. Touch interface inogona kupihwa neI2C kana USB uye kuratidza interface inogona kupihwa neRGB kana HDMI, kuburikidza iyo inogona kubatanidzwa kune raspberry pi neplug uye kutamba.
| Model Number | HX0701706 |
| Brand | Grahowlet |
| Size | 7.0 inch |
| Operating Temperature | -20 dhigirii - 70 dhigirii |
| Storage Temperature | -30 dhigirii - 80 dhigirii |
| Outline Dimension | 165.00(W)x100.00(H)x7.73(D) mm |
| Viewing Area | 154.88(W)x86.72(H) mm |
| Active Area | 154.21(W)x85.92(H) mm |
| Tsigira Systems | Windows/Android/Linux nezvimwe. |
| Warranty | 1 gore |
| Interface Type | 6pins IIC/USB/RS232 |
| Chimiro | G+G |
| Mutongi IC | Cypress |
| Bata Points | 10 points |
| Transparency | Yakakura kupfuura kana yakaenzana ne85% |
| Pamusoro Kuoma | Huru pane kana kuenzana na 6H |
| Power Supply Voltage | 2.8V - 3.3V |
| Resolution | 800X480 |
| Interface Type | RGB/HDMI/VGA |
| Luminance | 1000 cd/m² |
| Viewing Angle | 70/70/50/70 |
FAQ
Q: Kune chigadzirwa chine kunze kwekushandisa nharaunda, inoda kusangana nezvinodiwa zvezuva rinoverengwa , Chii chinofanira kutariswa pakusarudza mhando?
A: 1. Izvo zvinodiwa kuti utarise tembiricha yakafara yekushanda yecapacitive touch screen uye skrini yekuratidzira, ingangoita -20 kusvika 70 madhigirii inofanira kusangana, sarudzo yekupedzisira inofanira kuitwa zvichienderana nemamiriro chaiwo ekushandisa chigadzirwa; 2. Kana simba rekushandisa rakakosha uye mari yacho haina kunyanya kuoma, sarudzo yakanakisisa ndeye semi-transparent display screen. Kana iyo mutengo uye saizi yakakosha, iyo skrini yekuratidzira inofanirwa kusangana nezvinodiwa zvekusimbisa; 3. Iyo capacitive touch screen cover girazi inogona kuitwa neAG kana AR + AF. Kana iri iyo kuratidza uye kubata kunofanirwa kuve kwakasungirirwa, haisi "inofanira" asi bhonasi.
